Vinje Industri Dimensional Control
CAD Design & Support

Turn reliable site data into models your project can use

We update and develop CAD models from measured site conditions, existing project information and agreed design requirements. The result is practical engineering information for design, fabrication, review and installation.

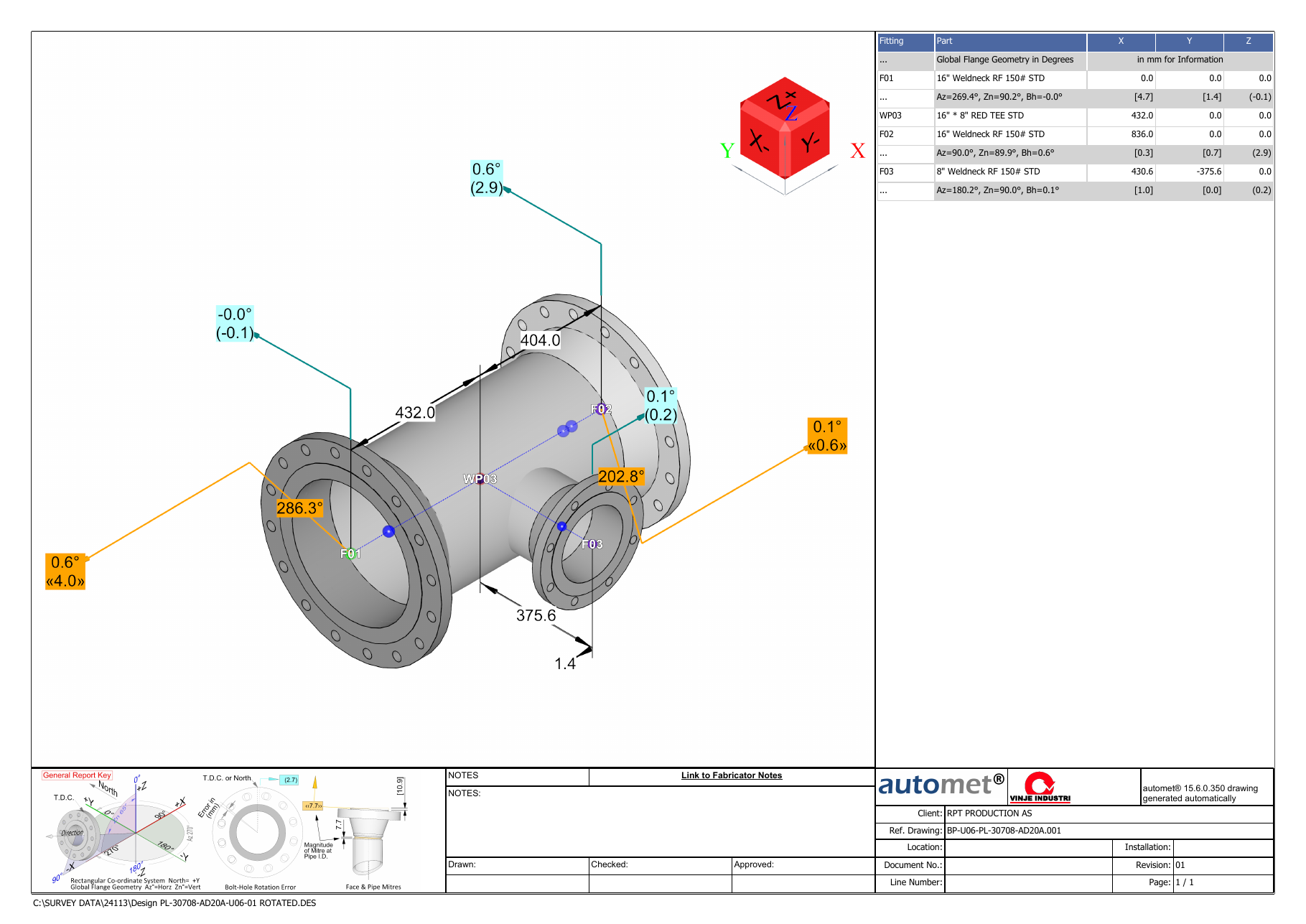

CAD model and dimensional information for an industrial pipe fitting
Project support

Keep design information aligned with actual site conditions

Existing drawings and models do not always reflect later modifications or the geometry found on site. We combine CAD expertise with reliable survey data so project teams can work from a clearer, more current design basis.

CAD model updates Revise existing models to reflect measured conditions, modifications and agreed project changes.
Scan-to-CAD Develop usable geometry from point clouds and survey data for brownfield and modification work.
Design support Help engineering teams understand interfaces, clearances and fit where new work meets existing assets.
Project-ready delivery Provide models and drawings in commonly used formats agreed with the customer.
What we deliver

CAD information shaped around the next project decision

Deliverables are defined for the people who will use them, from engineering and fabrication to the installation team.

01

Updated 3D models

Current geometry for equipment, pipework, structures and the interfaces that matter to the planned work.

02

Fabrication drawings

Clear model views and drawings that support review, prefabrication and communication across disciplines.

03

Flexible file formats

Delivery in agreed industry formats such as DWG, DXF, STEP, IGES or IFC when supported by the project workflow.

How we work

From project need to controlled CAD delivery

Each assignment is scoped around the required accuracy, level of detail, interfaces and final use of the model.

  1. Define the need Agree the area, purpose, required detail and project coordinate system.
  2. Review the source data Assess available drawings, models, point clouds and survey control.
  3. Build or update Create the agreed geometry and focus detail where the project needs it.
  4. Check the interfaces Review model content against measured conditions and critical tie-in areas.
  5. Deliver and support Issue the agreed files and assist the project team with review and use.
A dependable design basis

Reduce uncertainty before fabrication and installation

A model based on verified site information helps teams detect interface and clearance issues earlier, coordinate work remotely and move into fabrication with greater confidence.

Discuss your CAD requirements
